Grape Enterprises maintains a comprehensive quality control system with NABL-certified measuring instruments to ensure every tubesheet drilling project meets exacting specifications.
Our commitment to precision within tight tolerances guarantees exceptional quality for industrial heat exchangers and pressure vessels.
Excellence in Precision
Quality is the foundation of everything we do at Grape Enterprises. Since our establishment in 2017, we have maintained an unwavering commitment to delivering precision-engineered solutions that exceed client expectations.
Our quality control system is integrated into every stage of the manufacturing process—from initial inspection of raw materials to final dimensional verification before delivery.

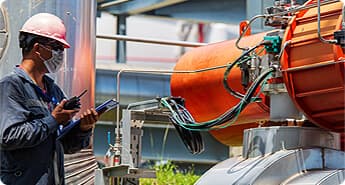

Quality Control Workflow
1. RAW MATERIAL INSPECTION
- Material certification verification
- Dimensional checks before processing
2. IN-PROCESS INSPECTION
- Real-time monitoring during drilling operations
- Intermediate dimensional verification
3. FINAL INSPECTION
- Comprehensive dimensional checks
- Go & NoGo gauge verification
- Surface finish assessment
4. QUALITY DOCUMENTATION
- Inspection reports with measurements
- Certificate of conformity & Traceability records
NABL-Certified Measurement Instruments
| Instrument Type | Range | Accuracy | Application |
|---|---|---|---|
| Vernier Caliper | 0-300 mm | ±0.02 mm | General dimensional checks |
| Vernier Caliper | 20-2000 mm | ±0.05 mm | Large component measurements |
| Micrometer | 0-25 mm | ±0.01 mm | Precision thickness measurement |
| Micrometer | 25-50 mm | ±0.01 mm | Medium range precision checks |
| Inside Dial Gauge | 0-25 mm | ±0.01 mm | Internal diameter verification |
| Inside Micrometer | 100-1200 mm | ±0.02 mm | Large bore measurements |
| Plug Gauges (Go & NoGo) | Multiple sizes | ±0.01 mm | Hole size verification |
Plug Gauge Specifications
| Range | Guage Sizes (Go & NoGo) |
|---|---|
| Small Bore | Ø19.20 mm, Ø20.00 mm |
| Medium Bore | Ø25.00 mm, Ø25.40 mm, Ø32.00 mm |
| Large Bore | Ø38.10 mm, Ø44.50 mm, Ø50.80 mm, Ø51.44 mm |
* Additional custom sizes available upon request.
Precision Tolerances
| Parameter | Standard | Tight |
|---|---|---|
| Hole Diameter | ±0.05 mm | ±0.02 mm |
| Hole Position | ±0.10 mm | ±0.05 mm |
| Surface Finish | Ra 3.2 µm | Ra 1.6 µm |
Quality Assurance Benefits
- 100% Inspection Guarantee: Every component is verified before shipping.
- Traceability System: Raw material to finished product tracking.
- Calibrated Instruments: Regular certification by NABL labs.
- Experienced QC Team: Trained professionals in precision measurement.
- Industry Compliance: Adherence to ASME, ASTM, and client standards.
Standard QC Checklist
Material
- Grade confirmation
- Heat traceability
- Cert review
Dimensions
- OD & Thickness
- Hole Size (Plug)
- Position Accuracy
Impact of Quality
| Quality Aspect | Performance Impact |
|---|---|
| Hole Accuracy | Proper tube fit & leak-proof joints |
| Position Precision | Structural integrity & heat transfer |
| Surface Finish | Reduced stress & extended service life |
Continuous Improvement
- Regular training for personnel on latest techniques.
- Instrument upgrades for state-of-the-art measurement.
- Process optimization based on quality analytics.
- Client feedback integration to enhance systems.
Ready to experience precision quality?
Contact us today to discuss your requirements and receive a detailed quote with our quality assurance commitment.
Request Quote
